Setup environment for Deep learning with Deeplearning4j

In this tutorial, we shall see how to Setup environment for Deep Learning with Deeplearning4j and import dl4j-examples from Git to IntelliJ IDEA to start working on Deep Learning.

Following are the steps :

  1. Install Java.
  2. Install Apache Maven.
  3. Download IntelliJ IDEA Community Edition.
  4. Install Git.
  5. Start hands-on with dl4j-examplesClone
    – Git project “dl4j-examples”.
    – Build the project using Maven.
    – Import built project to IntelliJ IDEA as Maven.

Skip any of the above steps if you have already installed. Also, it is recommended to update the software to the latest available versions.

Install Java

A step-by-step guide to install java.

Install Apache Maven

Step 1 : Download the latest version of Maven at https://maven.apache.org/download.cgi

Step 2 : Install Maven following the instructions at https://maven.apache.org/install.html

Step 3 : Verify if maven is installed using the command

mvn –version

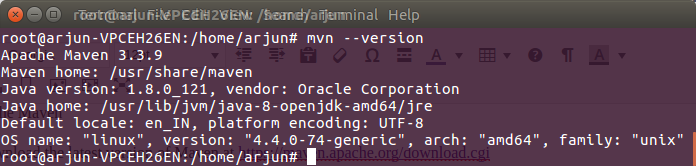

The result would be as shown in the below screenshot :

check maven installation - setup environment for Deep learning with Deeplearning4j - Machine Learning Tutorials - www.tutorialkart.com
Check Maven installation using the command “mvn –version”

Download IntelliJ IDEA Community Edition

  1. Download the latest version of IntelliJ IDEA from https://www.jetbrains.com/idea/download/
  2. Extract the downloaded package and go into the folder where bin, lib, plugin, etc., folders are present. An installation guide, “Install-Linux-tar.txt” (for Linux installation), is present in the location. [A similar name would be present for other Operating Systems].
  3. Follow the instructions present in the setup guide.

Install Git

Instructions for installing Git are available at https://git-scm.com/book/en/v2/Getting-Started-Installing-Git

Working with dl4j-examples

Step 1

Create a new directory for working with dl4j projects. Say “dl4j-workspace”. And execute the following git command to download the dl4j-examples from the git repository.

$ git clone https://github.com/deeplearning4j/dl4j-examples.git

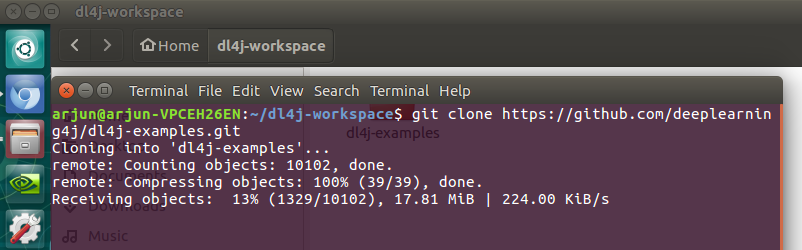

Following screenshot shows download in progress for dl4j-examples :

Clone dl4j-examples from Git - setup environment for Deep learning with Deeplearning4j - Machine Learning Tutorials - www.tutorialkart.com
Clone dl4j-examples from Git

Step 2

Once the download is completed, go to the folder dl4j-examples and build the project using the following command

$ mvn clean install

Note : Make sure the JAVA_HOME path variable is pointing to the JRE of the latest JDK available in your machine.

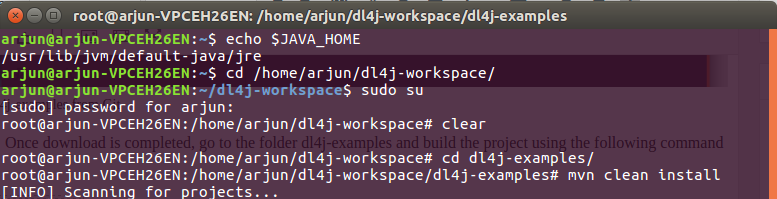

When the command “mvn clean insall” is run, the result is as shown in the below screenshot :

mvn clean install of dl4j-examples - setup environment for Deep learning with Deeplearning4j - Machine Learning Tutorials - www.tutorialkart.com
mvn clean install

It takes some time for Maven to download all the artifacts mentioned in the pom file and build the project.

Note : Make sure your Java installation has got JavaFX. In case not, you would get a COMPILE ERROR. Try installing JavaFX by executing the following command and try “mvn clean install” again.

sudo apt-get install openjfx

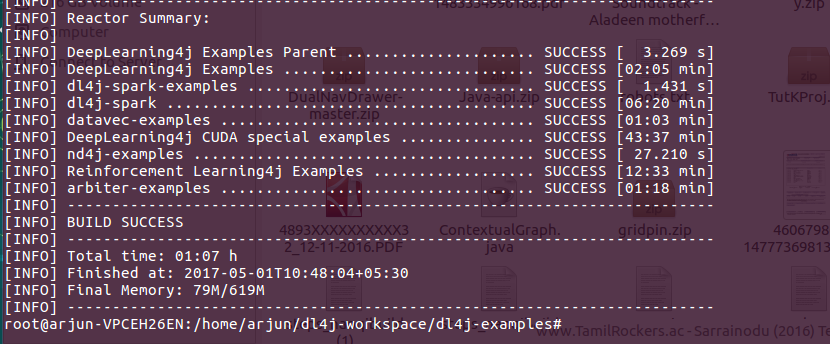

Once the “mvn clean install” command is successful, you should see the BUILD SUCCESS as seen in the below screenshot :

dl4j-examples BUILD SUCCESS - setup environment for Deep learning with Deeplearning4j - Machine Learning Tutorials - www.tutorialkart.com
dl4j-examples BUILD SUCCESS

Step 3

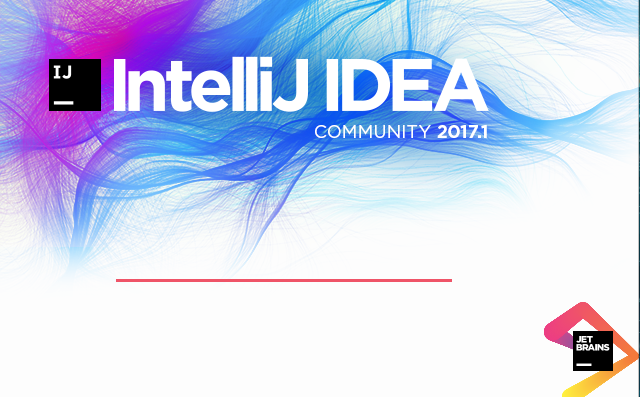

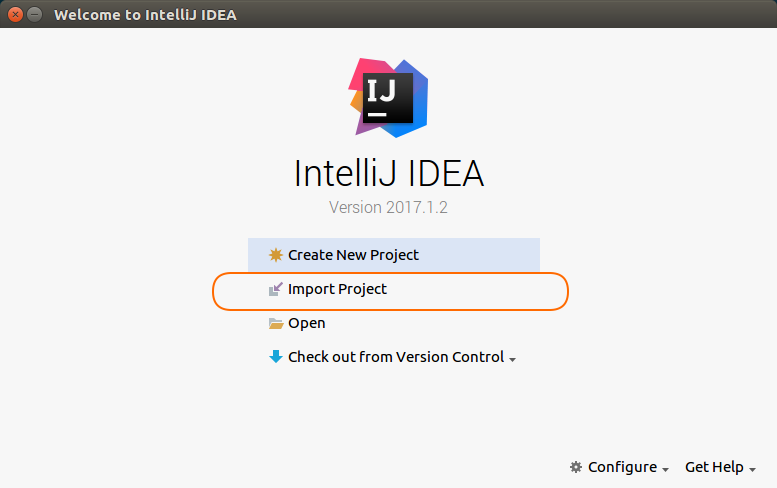

Start IntelliJ IDEA.

Start intelliJ IDEA
  • Click on Import Project

Import Project

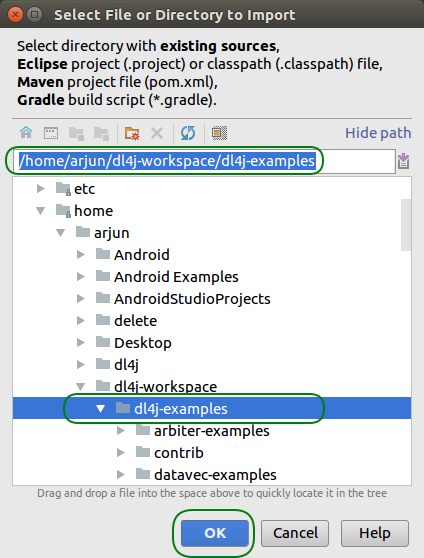

Choose the project folder. Click OK.

Choose Project Folder

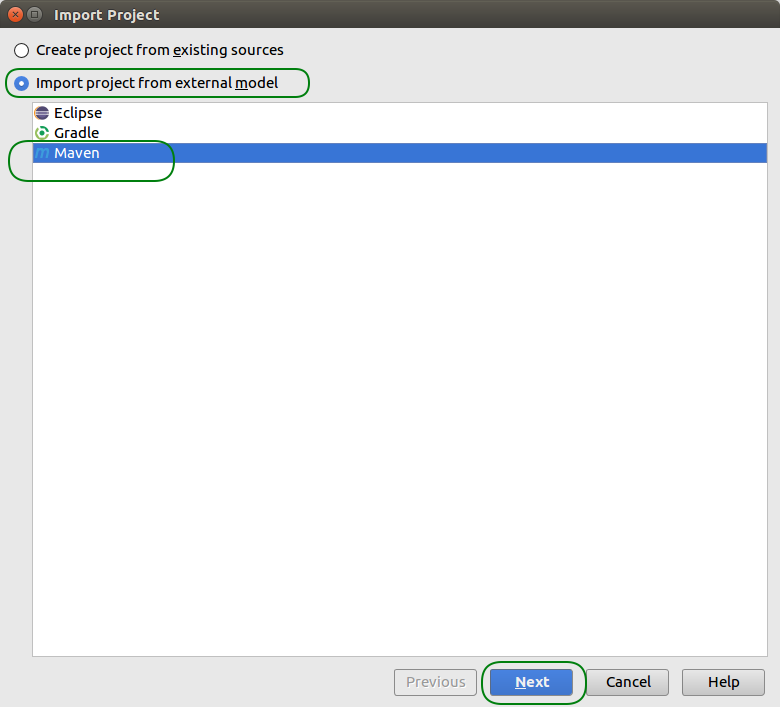

Import Project as Maven model. Click Next.

Import project as Maven

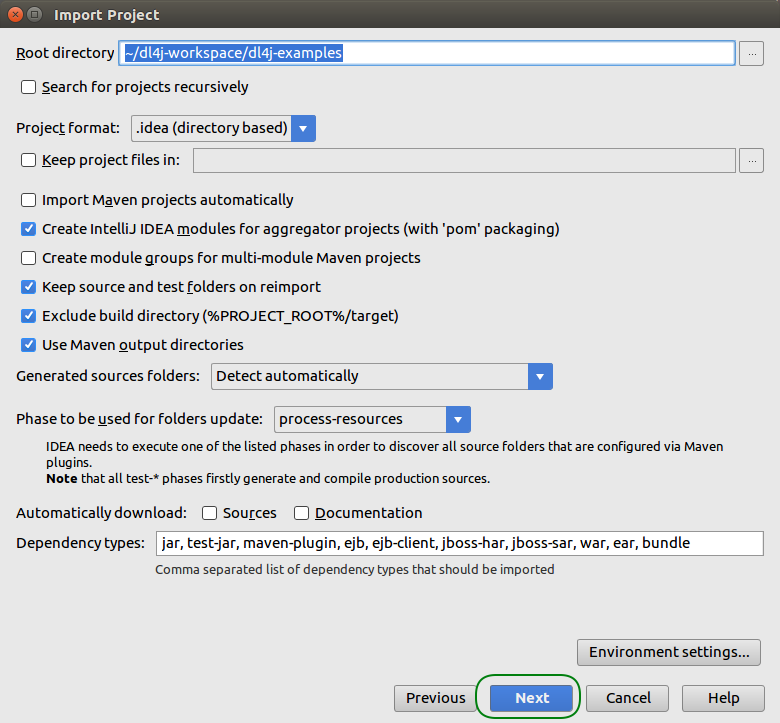

Project configuration. Keep defaults and Click on Next.

Project Configuration

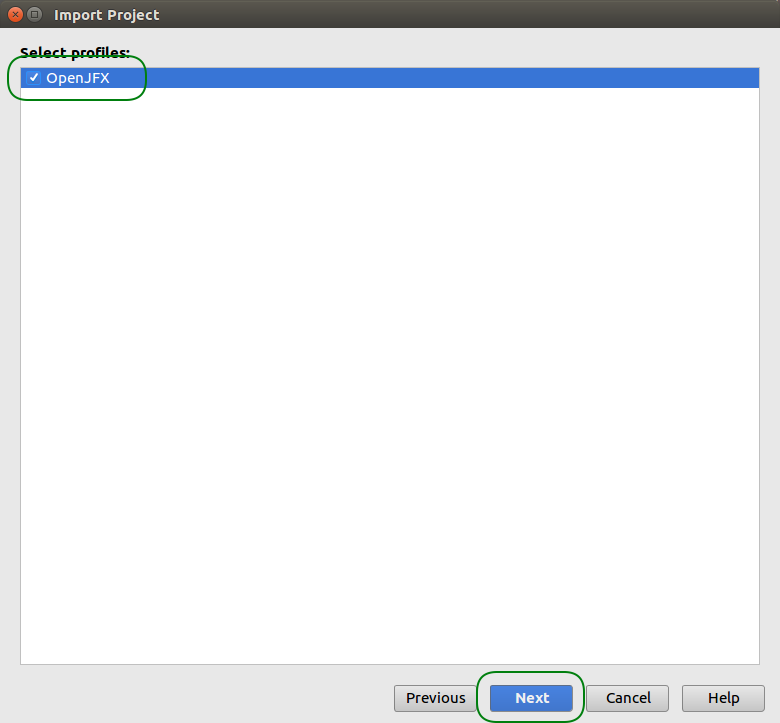

Select Profile – OpenJFX. Click Next.

OpenJFX Profile

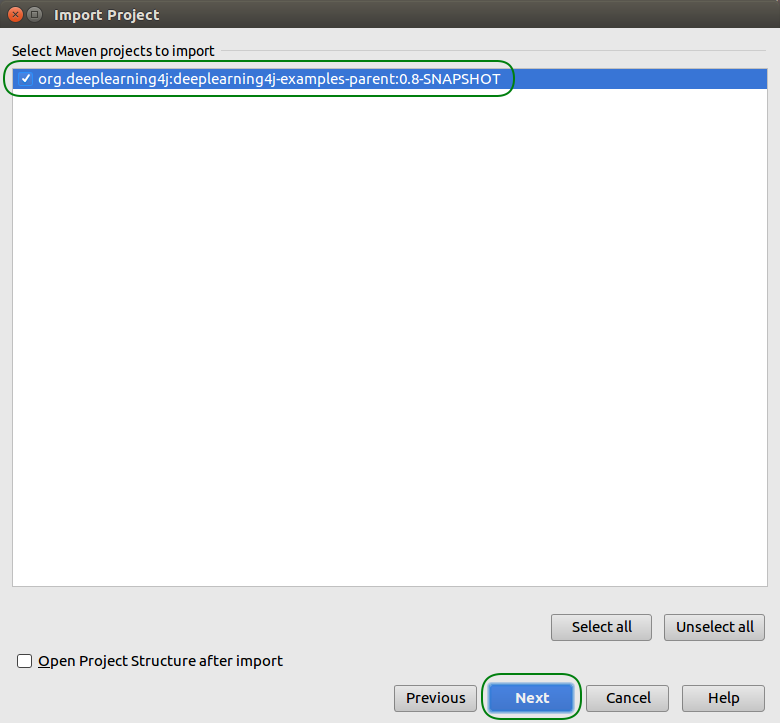

Select the Maven projects in the project folder. Click Next.

Select Maven Projects from the project folder

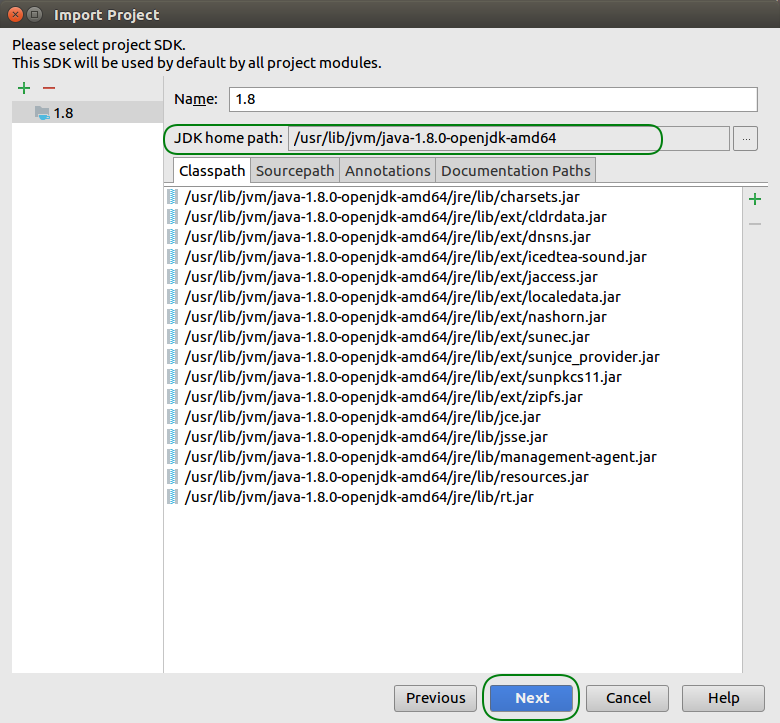

Select project SDK. Click Next.

Select SDK for Project

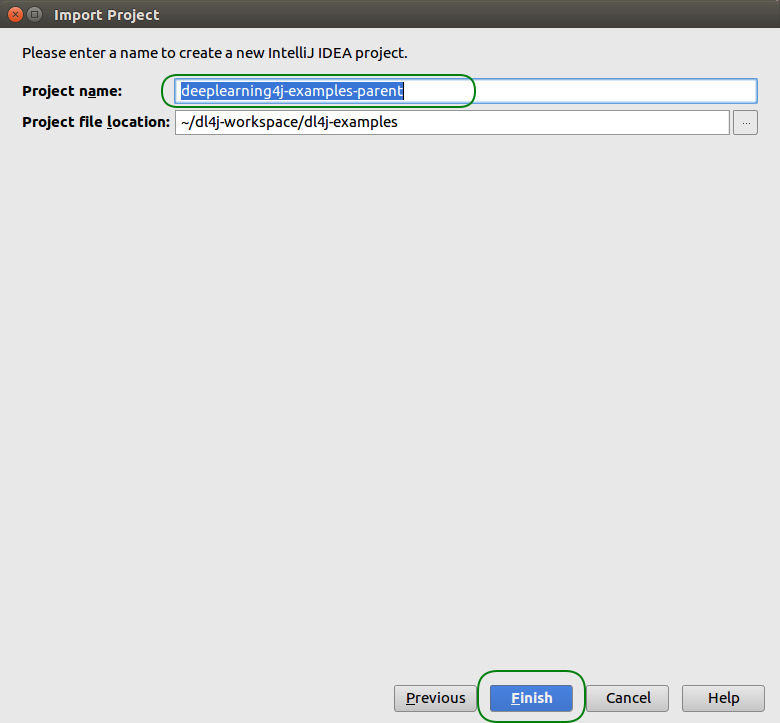

The final step, give a name to the project. Click Finish.

Give Project Name

It takes some time for IntelliJ to index the resources in the project. And the project structure would look something link in the following screenshot.

dl4j examples Project Structure

The project “dl4j-examples” is successfully setup.

Conclusion

In this Deep Learning tutorial, we have seen how to setup environment for Deep learning with Deeplearning4j and import the Git project “dl4j-examples” to IntelliJ IDEA.
