NumPy convolve() – Binary Convolution of Two 1D Arrays

NumPy convolve()

The numpy.convolve() function computes the discrete, linear convolution of two one-dimensional sequences. Convolution is commonly used in signal processing to model the effect of a linear time-invariant system on a signal.

Syntax

numpy.convolve(a, v, mode='full')

Parameters

Parameter	Type	Description
a	(N,) array_like	First one-dimensional input array.
v	(M,) array_like	Second one-dimensional input array.
mode	{‘full’, ‘valid’, ‘same’}, optional	Determines the size of the output array.

Modes in Convolution

Mode	Description
'full'	Returns the convolution at each point of overlap with an output size of (N+M-1). Includes boundary effects.
'same'	Returns an output of length max(N, M), keeping the center of the convolution.
'valid'	Returns only values where the input arrays fully overlap, with an output size of max(N, M) – min(N, M) + 1.

Return Value

Returns an ndarray containing the discrete, linear convolution of the input arrays.

---

Examples

1. Basic Convolution Using Default Mode (‘full’)

In this example, we perform a simple convolution using two one-dimensional arrays.

import numpy as np

# Define two input sequences
a = np.array([1, 2, 3])
v = np.array([0, 1, 0.5])

# Compute the convolution using default mode ('full')
result = np.convolve(a, v)

# Print the result
print("Convolution result (full mode):", result)

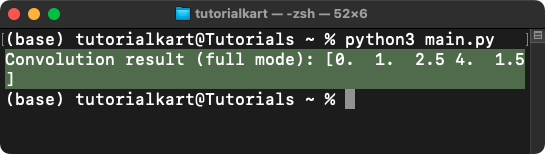

Output:

Convolution result (full mode): [0.  1.  2.5  4.  1.5]

2. Convolution Using ‘same’ Mode

The ‘same’ mode ensures that the output has the same length as the longer input sequence.

import numpy as np

# Define two input sequences
a = np.array([1, 2, 3])
v = np.array([0, 1, 0.5])

# Compute the convolution using 'same' mode
result = np.convolve(a, v, mode='same')

# Print the result
print("Convolution result (same mode):", result)

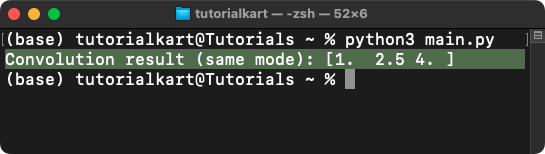

Output:

Convolution result (same mode): [1.  2.5  4. ]

3. Convolution Using ‘valid’ Mode

The ‘valid’ mode returns only the parts of the convolution where the input arrays fully overlap.

import numpy as np

# Define two input sequences
a = np.array([1, 2, 3])
v = np.array([0, 1, 0.5])

# Compute the convolution using 'valid' mode
result = np.convolve(a, v, mode='valid')

# Print the result
print("Convolution result (valid mode):", result)

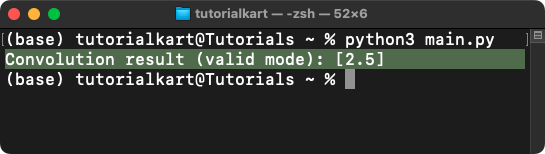

Output:

Convolution result (valid mode): [2.5]

4. Convolution with a Larger Kernel

This example demonstrates the convolution of a sequence with a larger kernel.

import numpy as np

# Define a longer input sequence
a = np.array([3, 2, 1, 5, 4])

# Define a kernel
v = np.array([0.2, 0.5, 0.2])

# Compute the convolution using 'full' mode
result = np.convolve(a, v, mode='full')

# Print the result
print("Convolution result with larger kernel:", result)

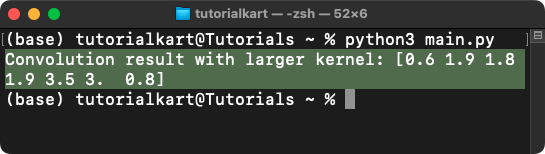

Output:

Convolution result with larger kernel: [0.6 1.9 1.8 1.9 3.5 3.  0.8]

The result shows how the input sequence is smoothed when convolved with a larger kernel.
