NumPy heaviside()
The numpy.heaviside() function computes the Heaviside step function element-wise.
It is commonly used in signal processing and control systems to represent step changes in values.
Syntax
numpy.heaviside(x1, x2, /, out=None, *, where=True, casting='same_kind', order='K', dtype=None, subok=True)Parameters
| Parameter | Type | Description |
|---|---|---|
x1 | array_like | Input values. The function evaluates whether values are negative, zero, or positive. |
x2 | array_like | The function value for elements where x1 == 0. Typically 0.5, but can be 0 or 1. |
out | ndarray, None, or tuple of ndarray and None, optional | Optional output array where the result is stored. If None, a new array is created. |
where | array_like, optional | Boolean mask specifying which elements should be computed. Other elements retain their original value. |
casting | str, optional | Defines the casting behavior of data types. |
order | str, optional | Memory layout order of the output array. |
dtype | data-type, optional | Defines the data type of the output array. |
subok | bool, optional | Determines if subclasses of ndarray are preserved in the output. |
Return Value
Returns an array or scalar containing the computed Heaviside step function values. If both x1 and x2 are scalars, a scalar is returned.
Examples
1. Basic Heaviside Function Computation
In this example, we compute the Heaviside step function for a scalar input value.
import numpy as np
# Define input values
x1 = -2 # A negative value
x2 = 0.5 # The value when x1 is zero
# Compute the Heaviside function
result = np.heaviside(x1, x2)
# Print the result

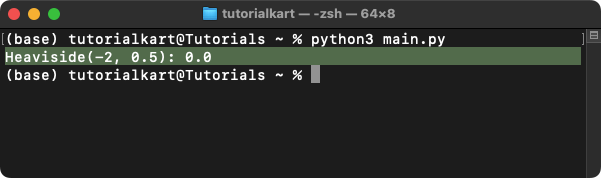

print("Heaviside(-2, 0.5):", result)Output:
Heaviside(-2, 0.5): 0.0
Since x1 is negative, the Heaviside function returns 0.
2. Computing Heaviside for an Array of Values
Here, we compute the Heaviside function for an array of input values.
import numpy as np
# Define an array of input values
x1 = np.array([-3, -1, 0, 1, 3])
# Define the value to be used when x1 is zero
x2 = 0.5
# Compute the Heaviside function for the array
result = np.heaviside(x1, x2)
# Print the results
print("Input values:", x1)

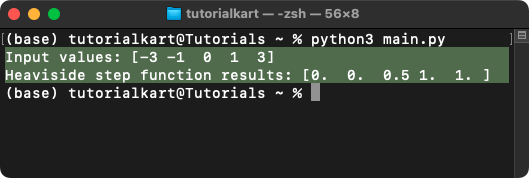

print("Heaviside step function results:", result)Output:
Input values: [-3 -1 0 1 3]
Heaviside step function results: [0. 0. 0.5 1. 1. ]
Values less than zero return 0, values greater than zero return 1, and x1=0 returns 0.5 (the specified x2 value).
3. Using the out Parameter
We store the result in a predefined output array.
import numpy as np
# Define an array of input values
x1 = np.array([-2, 0, 2])
x2 = 0.5 # Value when x1 is zero
# Create an output array with the same shape
output_array = np.ndarray(shape=x1.shape)
# Compute the Heaviside function and store in output_array
np.heaviside(x1, x2, out=output_array)
# Print the results
print("Computed Heaviside values:", output_array)Output:
Computed Heaviside values: [0. 0.5 1. ]
4. Using the where Parameter
Using a condition to compute Heaviside function only for selected elements.
import numpy as np
# Define an array of input values
x1 = np.array([-2, 0, 2])
x2 = 0.5 # Value when x1 is zero
# Define a mask (compute only where mask is True)
mask = np.array([True, False, True])
# Compute the Heaviside function with the mask
result = np.heaviside(x1, x2, where=mask)
# Print the results
print("Computed Heaviside values with mask:", result)Output:
Computed Heaviside values with mask: [0. 0. 1. ]
The function is computed only for elements where mask=True, while other values remain unchanged.
